Home / New Equipment / Tractors / Tractor Attachments / Land Planes / LP20 Series
John Deere

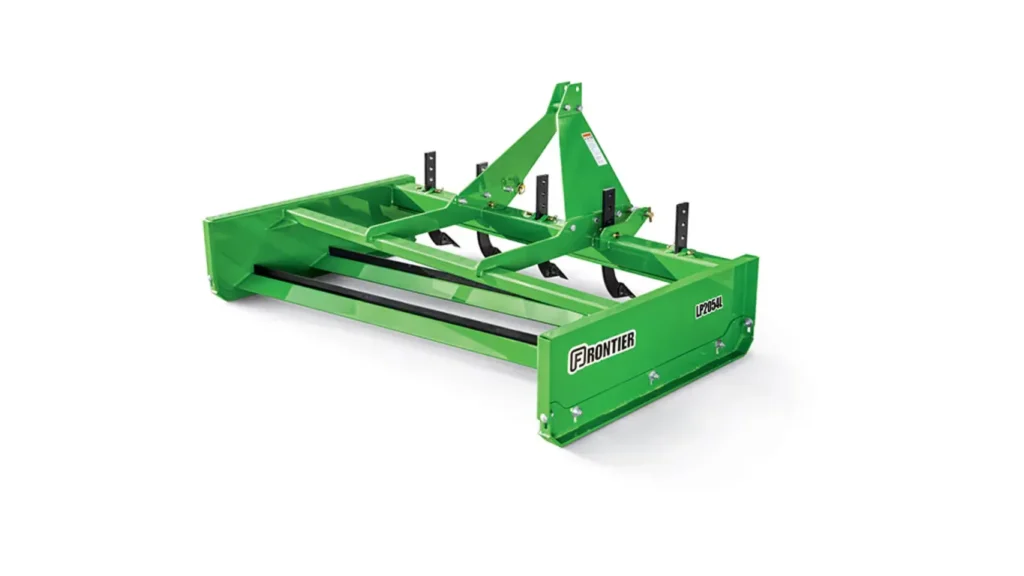

LP20 Series
Land Planes
Equipment Description
- Adjustable skid shoes
- Scarifier shanks
- Cutting edges are reversable and replaceable
- iMatch™/Quick Hitch Compatible
Select a category to view specifications (or view all).
| Dimensions - Working width | LP2054L: 137.2 cm 54 in. LP2160: 152.4 cm 60 in. LP2172: 182.9 cm 72 in. LP2184: 213.4 cm 84 LP2196: 243.8 cm 96 |
|---|---|
| Dimensions - Overall Width | LP2054L: 147.3 cm 58 in. LP2160: 165.1 cm 65 in. LP2172: 193.0 cm 76 in. LP2184: 223.5 cm 88 in. LP2196: 254.0 cm 100 in. |
| Dimensions - Overall Height | LP2054L: 83.8 cm 33 in. LP2160: 88.9 cm 35 in. LP2172: 88.9 cm LP2184: 88.9 cm LP2196: 88.9 cm |
| Dimensions - Overall Length | LP2054L: 121.9 cm 48 in. LP2160: 121.9 cm LP2172: 121.9 cm LP2184: 137.2 cm 54 in. LP2196: 137.2 cm |
| Weight - Operating | LP2054L: 143.3 kg 316 lb LP2160: 219.5 kg 484 lb LP2172: 239.5 kg 528 lb LP2184: 276.7 kg 610 lb LP2196: 296.2 kg 653 lb |
| Weight - Shipping | LP2054L: 308.4 kg 680 lb LP2160: 461.8 kg 1018 lb LP2172: 501.7 kg 1106 lb LP2184: 553.4 kg 1220 lb LP2196: 615.1 kg 1356 lb |
| Hitch - Style | All:Clevis w/ Pin |
| Hitch - 3-point compatibility | LP2054L: Cat 1 Limited LP2160: Cat 1 LP2172: Cat 1 LP2184: Cat 1 and 2 LP2196: Cat 1 and 2 |
| Hitch - Quick-coupler compatible (Cat. 2) | All:Yes |
| Cutting Edge - Type | All:High Carbon Heat Treated Blades |
| Cutting Edge - Reversible | All:Yes |
| Cutting Edge - Replaceable | All:Yes |
| Cutting Edge - Quantity | All:Two |
| Cutting Edge - Size, in. (cm) | All:0.95x15.2 cm 0.375x6 in. |
| Cutting Edge - Placement | All:Blades Positioned at a 10 Degree Angle |
| Warranty - Time period | All:1 year |
| Weight - Operating | LP2054L: 143.3 kg 316 lb LP2160: 219.5 kg 484 lb LP2172: 239.5 kg 528 lb LP2184: 276.7 kg 610 lb LP2196: 296.2 kg 653 lb |
Featured Content
Skid shoes are adjustable up and downSkid shoes increase the life of the cutting edges on the land planes while avoiding damage to the working surface.
The skid shoes are adjustable up and down on each side plate to allow for the creation of a crown on a road for water runoff.
By replacing the skid shoes when needed, it will extend the life of the land plane.
Adjustable for different types of groundwork scarifier shanks shown engaged
Adjustable shanksThe scarifier shanks can be easily adjusted for depth control.
