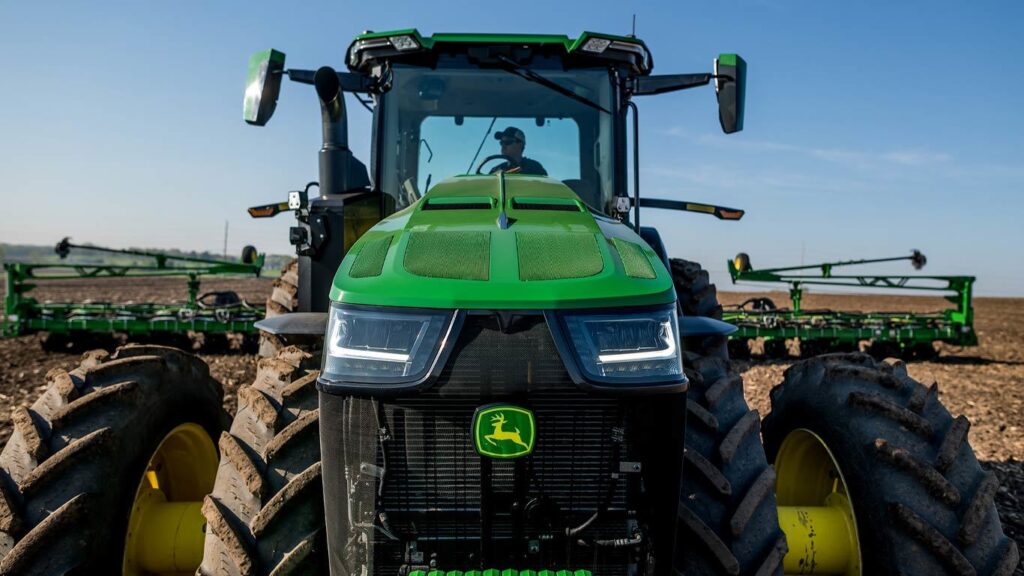

New John Deere 8R 250 Row-Crop Tractor

Specifications

Compare >>> Select up to 2 models to compare specifications

John DeereJohn Deere 8R 250 Row-Crop Tractor

Add Model --Please Select-- 6R 230 FT4 (Model year 2023) 6R 250 FT4 (Model year 2023) 7R 230 (Model year 2023) 7R 250 (Model year 2023) 7R 270 (Model year 2023) 8R 230 (Model year 2023) 8R 280 (Model year 2023) Magnum™ 240 Magnum™ 280 Magnum™ 250 824 Vario; 237 engine (205 PTO) hp 826 Vario; 256 engine (225 PTO) hp 828 Vario; 276 engine (245 PTO) hp 930 Vario (Model year 2020) T7.245 T7.260 T7.270 T7.290

Add Model --Please Select-- 6R 230 FT4 (Model year 2023) 6R 250 FT4 (Model year 2023) 7R 230 (Model year 2023) 7R 250 (Model year 2023) 7R 270 (Model year 2023) 8R 230 (Model year 2023) 8R 280 (Model year 2023) Magnum™ 240 Magnum™ 280 Magnum™ 250 824 Vario; 237 engine (205 PTO) hp 826 Vario; 256 engine (225 PTO) hp 828 Vario; 276 engine (245 PTO) hp 930 Vario (Model year 2020) T7.245 T7.260 T7.270 T7.290

Engine description	John Deere PowerTech™ 9.0 L (B20 diesel compatible)
Engine displacement	9.0 L 549 cu in.
Rated engine power	ECE-R120: 184 kW 250 hp
Maximum engine power	ECE-R120: 202 kW 275 hp
Rated PTO power (hp SAE)	149 kW 200 hp
Maximum PTO power
Transmission type	Standard: e23™ PowerShift™ with Efficiency Manager™ 40K, 40 km/h 24.9 mph Optional: 16-speed PowerShift 40 km/h e23 PowerShift with Efficiency Manager 50K, 50 km/h 31 mph John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h 0.03-26 mph John Deere AutoPowr IVT 50K, 0.05-50 km/h 0.03-31 mph
Hydraulic pump rated output	Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm
Rear hitch category (SAE designation)	Standard: Category 3/3N standard lift at 610 mm (24 in.) behind hitch point: 6350 14,000 lb Optional: Category 3/3N at 610 mm (24 in.) behind hitch point: 8391 kg 18,500 lb Category 4N/3 at 610 mm (24 in.) behind hitch point: 9072 kg 20,000 lb
Base machine weight	MFWD/PowerShift: 11,700 kg 25,800 lb ILS™/e23: 12,700 kg 28,000 lb
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Description	John Deere PowerTech 9.0 L (B20 diesel compatible)
Engine type	In-line six, four valve
Engine family	MJDXL09.0333
Rated speed	2100 rpm
Aspiration	Single, variable geometry turbo; air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders liners	Wet-sleeve
Emission level	Final Tier 4
After treatment type	Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)
Displacement	9.0 L 549 cu in.

Rated power	ECE-R120: 184 kW 250 hp
Rated PTO power (hp SAE)	149 kW 200 hp
Maximum PTO power
Intelligent Power Management (IPM)
Power boost	10 percent
Maximum engine power	ECE-R120: 202 kW 275 hp
Engine peak torque	At 1600 rpm: 1171 Nm 863 lb-ft
Drawbar power
PTO torque rise	40 percent
Fuel injection system and control
Air cleaner type
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Type	Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h 24.9 mph Optional: 16-speed PowerShift 40 km/h e23 PowerShift with Efficiency Manager 50K, 50 km/h 31 mph John Deere AutoPowr IVT 40K, 0.05-42 km/h 0.03-26 mph John Deere AutoPowr IVT 50K, 0.05-50 km/h 0.03-31 mph
Reverser
Clutch; wet/dry
Creeper

Type	Closed-center, pressure/flow compensated system with load sensing
Pump rated output	Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm
Available flow at a single rear SCV	1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) coupler: 159 L/min 42 gpm
Available flow at front SCVs	96 L/min 25 gpm
Number of rear selective control valves (SCVs)	Standard: 1.3-cm (1/2-in.) ISO couplers: 4 Optional: 1.3-cm (1/2-in.) ISO couplers: 5 and 6 available 1.9-cm (3/4-in.) ISO coupler: 1
Number of mid selective control valves (SCVs)
Number of front selective control valves (SCVs)
Joystick SCV control
Auxiliary hydraulic features
SCV control	Electronic

Hitch draft control load sense type
Remote control valves available
Hitch category (SAE designation)	Standard: Category 3/3N standard lift at 610 mm (24 in.) behind hitch point: 6350 kg 14,000 lb Optional: Category 3/3N at 610 mm (24 in.) behind hitch point: 8391 kg 18,500 lb Category 4N/3 at 610 mm (24 in.) behind hitch point: 9072 kg 20,000 lb
Maximum lift capacity behind lift points	Standard (at 610-mm [24-in.] behind hitch point): 12,124 kg 26,729 lb
Lift capacity at standard frame
Sensing type	Electrohydraulic
Rear axle differential lock	Electrohydraulic

Drawbar category	Standard: Category 3 Optional: Category 4 Category 4 with heavy-duty support
Maximum vertical load	Dependent on drawbar position: 1837 to 2700 kg 4050 to 6000 lb Optional: 2,245 kg 4,950 lb 4,990 kg 11,000 lb

Type	Independent Standard: 44 mm (1.75 in.) 20-spline, 1,000 rpm Optional: 44 mm (1.75 in.), 20-spline, 1,000 rpm capable of 35 mm (1.375 in.) 540/1000 rpm 44 mm (1.75 in.) 20-spline, 1,000 rpm/1,000E rpm
Engine rpm (at rated PTO speeds)	16-speed PowerShift: 1,000 PTO rpm at 2,003 engine rpm, 1,000 ECO PTO rpm at 1,596 engine rpm, 540 PTO rpm at 1,817 engine rpm IVT: 1,000 PTO rpm at 2,000 engine rpm, 1,000 ECO PTO at 1594 engine rpm, 540 PTO rpm at 1,814 engine rpm e23 PowerShift: 1,000 PTO rpm at 1,995 engine rpm, 1,000 ECO PTO at 1,590 engine rpm, 540 PTO rpm at 1,810 engine rpm
Economy PTO speeds
Reverse PTO speeds
Multispeed PTO option availability	Available: 45-mm (1.75-in.), 1000-rpm and 1000E economy rpm PTO, in-cab shiftable
Ground speed PTO option availability
PTO actuation	Electrohydraulic with adjustable modulation

Category	Category 3N
Electric power
Standard lift capacity	Category 3N ground-engaging front hitch: 5200 kg 11,464 lb
Front power take-off (PTO)	44 mm (1.75 in.) 20 spline, 1000 rpm 35 mm (1.375 in.) 21 spline, 1000 rpm 35 mm (1.375 in.) 6 spline, 1000 rpm (available dependent on location)
PTO speed	1,000 PTO rpm at 2000 engine rpm

Type	Standard: Rack-and-pinion, double flat, or flange axles Optional: Long, single taper hub: Diameter: 110 x 3010 mm 4.33 x 118.5 in. Long, dual taper hub: Diameter: 110 x 3010 mm Long, dual taper hub: Diameter: 120 x 3010 mm 4.72 x 118.5 in. Short, double flat axle with single taper hub: Diameter: 120 x 2550 mm 4.72 x 100.4 in.
Final drive type	Inboard planetary three pinion
Differential controls
Axle type
Brakes, type and control
Rear differential lock	Full-locking electrohydraulic
Load rating

Type	Standard: 1300 Series MFWD Optional: 1500 Series MFWD ILS
Front axle differential lock	1300 Series MFWD: Limited Slip 1500 Series MFWD: Full-locking electrohydraulic ILS: Full-locking electrohydraulic
Load rating

Rear
Wheel tread range	1300 Series MFWD: 1524-2235 mm 60-88 in. 1500 Series MFWD: 1524-3657 mm 60-144 in. ILS: 1524-3657 mm
Turning radius with brakes
Turning radius without brakes	1300 with 480/70R30 Group 42 Tires at 153.7-cm (60.5-in.) spacing: 6.05 m 19.8 ft 1500 with 420/850R34 Group 43 tires at 182.9-cm (72-in.) spacing: 5.71 m 18.7 ft ILS with 480/70R34 Group 43 tires at 184.2-cm (72.5-in.) spacing: 6.45 m 21.2 ft
Central Tire Inflation System (CTIS)	Optional
Front

Tread spacing
Drive type
Track width
Mid-rollers

Type	Standard: Hydraulic power-steering with electric pump back-up Optional: ActiveCommand Steering 2 (ACS™ 2) with electronic backup pump

Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes

Alternator size	Standard: 200 amp Optional: 330 amp
Battery options	12 V
Working lights	Standard: 18 halogen Available: 18 LED 22 LED
Type of bulb in headlight (Halogen, Zenon, LED)	Standard: halogen, 65 W Available: LED
Type of bulb in beacon (Halogen, Zenon, LED)
dB(A) rating for backup alarm
Total cold cranking amps	1,850 CCA

Rollover protective structure, OOS
Seat	Degree of seat swivel, left hand 25 degree (angle) Degree of seat swivel, right hand 40 degree (angle) Standard: air suspension Optional: ActiveSeat™ II
Cab suspension	Optional
Instructional seat	Standard
Display	Standard: 4600 Generation 4 CommandCenter™: 25.4 cm 10 in.
Radio	Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume	3.24 m3 114 cu ft
dB(A) rating
Cab glass area	6.52 m2 70.18 sq ft
Safety glass rating
Front visibility

Wheelbase	MFWD: 3,080 mm 121.3 in. ILS: 3,050 mm 120.1 in.
Overall width
Overall length	6,636 mm 261.3 in.
Overall height
Drawbar clearance	376 mm 14.8 in.
Front axle center	MFWD: 686 mm 27 in. ILS: 590 mm 23.2 in.
Approximate shipping weight, Open;Cab

Base machine weight	MFWD/PowerShift: 11,700 kg 25,800 lb ILS™/e23: 12,700 kg 28,000 lb
Maximum ballast level	20,000 kg 44,100 lb
Maximum permissible weight	20,000 kg 44,100 lb

Crankcase oil volume	1300 MFWD: 25.7 L 6.8 U.S. gal. 1500 MFWD: 27.6 L 7.3 U.S. gal. ILS: 25.8 L
Fuel tank	727 L CTIS: 651 L 172 U.S. gal.
Diesel exhaust fluid (DEF) tank	37.2 L 9.8 U.S. gal.
Cooling system	42.3 L 11.2 U.S. gal.
Transmission-hydraulic system	1300 MFWD: 180.7 L 47.7 U.S. gal. 1300 MFWD: 184.6 48.8 U.S. gal. ILS: 207.2 L 54.7 U.S. gal.

Interval for engine oil change	500 hours
Interval for hydraulic/transmission oil change	1,500 hours
Interval for engine coolant change	6,000 hours

Loader	700M
Lift capacity at full height
Maximum lift height
Leveling type

Guidance	Integrated AutoTrac™
Telematic	JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination)
Remote diagnostics	JDLink hardware standard

AutoTrac ready
ISOBUS ready
CommandCenter video inputs
Immobilizer
Side slope rating
Uphill/downhill slope rating
Country of manufacture	USA

Date collected	12 January 2022
