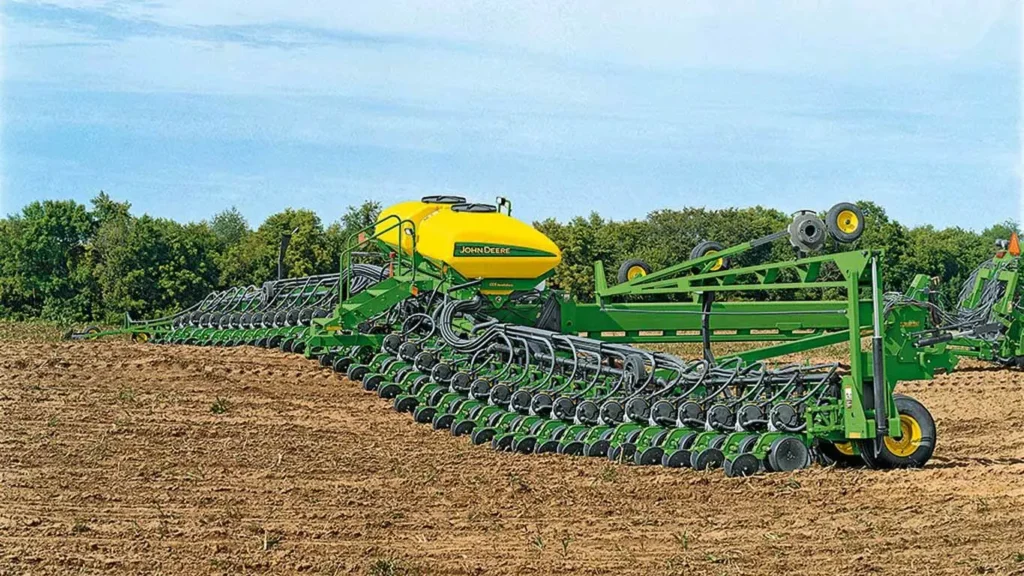

John Deere
DB90 54Row20 Planter
DB Planters
Equipment Description
- 54-row planting width on 90-ft toolbar
- 20-in. row spacing
- Available in ExactEmerge™, MaxEmerge™ 5e row units
- 5-section frame
| Key Specs - Number of rows | 54 |
|---|---|
| Key Specs - Row spacing | 51 cm 20 in. |
| Key Specs - Row unit seed hoppers | Capacity Vacuum meter: 2.2 L 0.062 bu |
| Key Specs - Seed Meters | Base Vacuum |
Featured List
- Increase productivity with ExactEmerge™ trench delivery system and BrushBelt™ delivery system
- Easily carry fluid on the planter with liquid tanks
- DB fertilizer options
- Mobile row-unit runoff
- Downforce system options
- Achieve accuracy with curve compensation
- Row cleaner options to meet residue management needs
- John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
Featured Content
Planter auxiliary cameraThe planter auxiliary camera utilizes an adjustable magnetic mounting base. This allows customers the ability to move and adjust the field of view to see what’s most important to them.
- Camera is integrated into the SeedStar™ 5 planter Ethernet system, video is streamed to the CommandCenter™ display
- Camera is mounted to an adjustable magnetic base allowing customers full adjustability of their field of view
- Configurable with existing programmable video triggers
- Compatible with model year 2025 and newer SeedStar 5 planters and performance upgrade kits
- Mirror image view and adjust field of view from the video app on the G5 CommandCenter™ display
Adjustable magnetic camera mounting bracket
Picture of the liquid fertilizer level sensorLiquid fertilizer level sensing is available on model year 2026 electric drive planters.
Fertilizer level sensing allows farmers to know how much liquid fertilizer is left in the tank from the convenience of the cab. The fertilizer level is displayed on the G5 CommandCenter™ Display in the SeedStar™ app.
- Better coordinate fertilizer tendering plans by knowing how many total gallons of liquid fertilizer are left on the planter.
- See total gallons of liquid fertilizer left on both planter and tractor if tractor is equipped with ExactRate™ tractor tanks.
- Enables customizable low fertilizer tank level warning alarms to prevent running out of liquid fertilizer.
- Fertilizer tender drivers and farm managers can remotely view fertilizer tank levels from a smart connected device using the John Deere Operations Center™ mobile app.
- Removes the need for the operator to manually set the fertilizer tank volume and enter the specific gravity.
View cumulative fertilizer tank levels on both 8RX ExactRate tanks and planter liquid fertilizer tank levels on the G5 CommandCenter Display
CCS tank levels displayed in the SeedStar™ applicationSeed level sensing is available on all model year 2026 electric drive planters equipped with Central Commodity System (CCS) tanks operating on the SeedStar™ 5 planter application.
Seed level sensing gives farmers better knowledge of planter seed levels. This reduces the risk of running out of seed while planting also allowing farmers to better manage seed tendering logistics to have the seed in the right place at the right time.
View individual and total tank levels from the G5 CommandCenter™ display in the SeedStar app:
- Better plan tendering logistics with seed volume or seed percentage remaining
- Remotely view seed tank percent levels from your computer using John Deere Operations Center™ or from your connected smart device using the John Deere Operations Center mobile app
- Individual tank level displayed helps farmers prevent one tank emptying before the other
- Enables customizable low seed tank level warning alarms
Customizable tank level alarms – view tank 1, tank 2 and total seed volume on G5 Display
1775NT 24Row with frame weight distribution
Hydraulic cylinder mounted on planter wings for frame weight distributionAs planters get larger and more customizable, there is more weight being carried by the center mainframe. This presents the possibility that weight may not be distributed evenly along the width of the planter frame during planting in certain circumstances. Some studies have shown there could be a potential yield loss of 70.5 L (2 bu) per acre in certain soil conditions from unequal weight distribution with more weight being on the center of the planter. The option has been added to have hydraulic cylinders mounted onto the frame of the planter that redistribute weight from the center of the planter to the rest of the tool bar.
Accumulator is mounted near the air compressor to absorb any spikes of pressureThe frame weight distribution can be enabled or disabled on the G5 CommandCenter™ or Universal Display with SeedStar™ 5 on MaxEmerge™ 5e or ExactEmerge™ equipped planters. On model year 2025 planters and newer, SeedStar™ 5 provides the capability to adjust frame weight distribution from the cab.
SeedStar™ 5 Frame Weight Distribution in-cab adjustThe system utilizes the tractor’s power beyond feature with load sense. Frame weight distribution is activated by the height switch, providing equal weight distribution at all times. In the scenario where a planter is equipped with frame weight distribution and onboard power generation for electric drives, there will be an orifice that directs hydraulic flow to fulfill the power generation requirement first and then provide oil to frame weight distribution.
On Model Year 2025 planters and newer, frame weight distribution can be adjusted from the cab on the G5 display. The system does not have active adjustment capabilities. When the planter is raised on headland turns, the system maintains pressure to the outside wings for a period of time to keep the system engaged to make the turn and reduce center frame tire weight on headlands.
IIn-cab adjust available on the following models with ExactEmerge or MaxEmerge 5e row units: all 1775NTs, 1795 24R20, 1795 31R15, 1795 32R15, DB44 24R22, all DB60s, DB66 36Row22, DB80 48R20, DB80 32R30, DB88 48R22, DB90 36R30 and DB90 54Row20. Frame weight distribution on models with MaxEmerge 5 will need to be manually adjusted from the valve block under the CCS tank.
SeedStar 5 screen exampleOverview
SeedStar 5 is the latest monitoring software for John Deere planters available for Model Year 2025. This system is paired with G5 displays and Implement Ethernet to provide high-definition documentation, faster data speeds, and more information in the cab.
Benefits
- Faster data speeds
- High Definition (5Hz data) documentation
- Enables new technology like ExactShot and FurrowVision
- Building block for future planter automation
Additional details
Requirement:
- G5 Display
- Planter Implement Ethernet (included on model year 2025 planters)
- Building block for future planter information
