John Deere

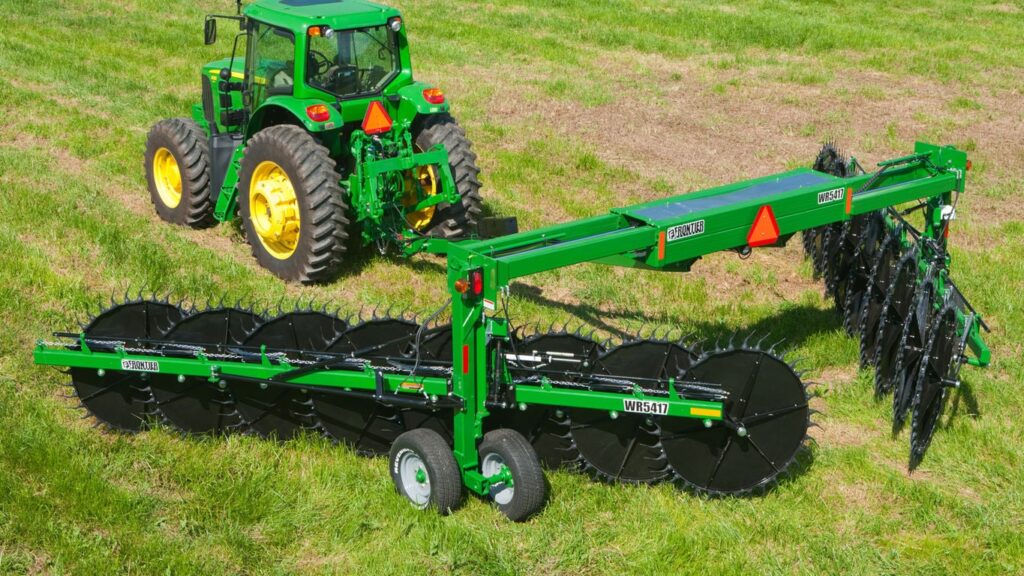

WR54 Series Heavy-Duty High-Capacity Overhead Frame Rakes
Farm Equipment
Equipment Description
- Easily Adjustable raking beams
- Free-floating rake wheels
- 29-ft. maximum raking width
- Master control system controls various rake wheel functions from inside cab
| Key Specs - Transport width | 3.75 m 12.33 ft |
|---|---|
| Key Specs - Raking width | Minimum 5.02 m 16.5 ft Maximum 8.83 m 29 ft |
| Key Specs - Windrow width | Minimum 60.96 cm 24 in. Maximum 183.64 cm 72.3 in. |
| Key Specs - Rake wheel | Quantity 17 Diameter 152.4 cm 60 in. |
Featured Content
Adjustable raking beams
Rake beams quickly adjust to set the rake wheels from 0 to 8 degrees to allow for more or less aggressive raking. The 0 degree setting is for dry crops and up to 8 degrees is used for short, wet, or matted-down crops.
Durable wind boards keep hay from getting caught in the wheels and are standard on the WR54 Series Heavy-Duty, High-Capacity Wheel Rakes.
Dampening spring allows wheels to float
Bi-directional spring option installedThe 152.4-cm (60-in.) rake wheels on the WR54 High-Capacity Wheel Rake float freely, thanks to individual dampening springs which are standard equipment. If more precise adjustment for the dampening and float of rake wheels is required, the optional bi-directional spring can be ordered.
The rake wheels may be lifted independently left or right, or both at the same time.
The master control creates ease for the operatorThe master control system on the WR54 Series High-Capacity Wheel Rake allows the operator to control various rake-wheel functions with the flip of a switch.
Raking widths reach a maximum of 8.8 m (29 ft)
Rake wheel beams adjust independentlyThe maximum raking width is 8.8 m (29 ft). The rake wheel beams may be angled independently. This allows the operator to do one sided raking if desired.
Rake wheel
Rubber-mounted rake wheel teethRubber-mounted teeth allow the rake beams to be tilted to match crop conditions for better raking performance.
Perfect when operating on rough terrainThe tandem wheels on WR54 Series High-Capacity Wheel Rakes provide added stability and a smooth, level operation across rough field conditions.
Overhead frame lock
Rake beam lockThe overhead frame can be locked with chains to secure it for transport and storage.
The rake beams can be locked for easy transport and storage.
Rake wheel lock
The rake wheels can be locked for safe transport and storage.
Windrow width reaches up to 182.9 cm (72 in.)
Electric control box handles all rake functionsThe windrow width of the WR54 Series can be adjusted hydraulically to a maximum of 182.9 cm (72 in.).
One hydraulic remote, along with the electrical control box, handles all the functions of the rake.
Use with tractors that have an open-center hydraulic system.
